Toyota Mabolo

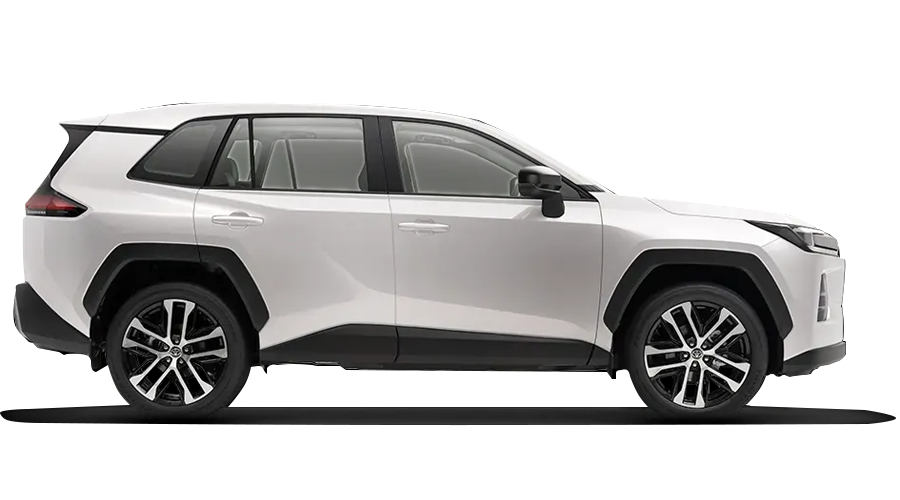

Avant-Garde Bronze Metallic	Ever Rest	Dark Blue Mica	Altitude Black Mica

Massive Gray	Urban Rock	Red Mica	Platinum White Pearl Mica

Specifications

Dimension and Capacity
Overall Dimensions (mm)	4,600 x 1,855 x 1,695
Wheelbase (mm)	2690
Min. Ground Clearance	201
Seating Capacity	5

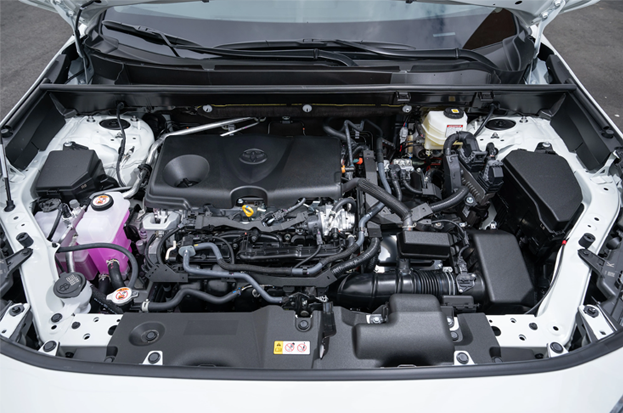

Engine
Model	A25A-FXS
Engine Type	16-Valve DOHC, 4-Cylinder, In-line type, with VVT-iE and VVT-I, Hybrid
Engine Displacement (cc)	2487
Maximum Output (ps/rpm)	186 / 6000
Total System Max Output	239
Maximum Torque (Nm/Rpm)	221 / 3600 - 5200
Fuel Type	Gasoline
Fuel Capacity (L)	55
Transmission
Transmission	e-CVT

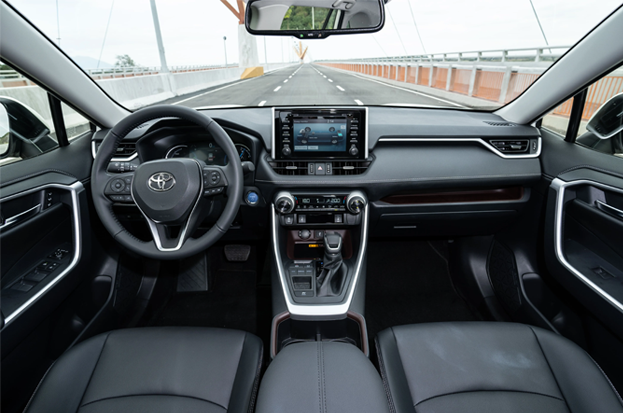

Interior
Seat Material	Leather
Driver Seat Type & Adjustment	8-Way Power with Memory
Passenger Seat Type & Adjustment	8-Way Power
Rear #1 Passenger Seat Type & Adjustment	60:40 Split + Fold Down + 2-Stage Reclining
Power Steering	Electronic
Steering Wheel Material	Leather
Parking Brake	EPB with Brake Hold
Sunvisor	D+P: With + Vanity Mirror + Light
Cup/Bottle Holder	Cupholder Fr: Front: 2, Rear: 2 / Bottleholder Rr: Front: 2, Rear: 2
Inside Rear View Mirror	Electrochromic Mirror
Economy Meter	Hybrid System Indicator
Seat Ventilation	Driver and Passenger
Seat Heater	Driver and Passenger (Hi-Mid-Lo), Rear (On-Off)
Tonneau Cover	With
Exterior
Headlamps	Projector LED
Daytime Running Lights	Dual (Upper & Lower)
Front Fog Lamps	LED
Mudguards	Front + Rear
Roof Rail	With
Front Windshield Wiper	Rain-Sensing
Rear Windshield Wiper	Intermittent + Washer
Rear Combination Lamps	LED
Outside Rear View Mirror	Auto-fold, Adjust
Rear Spoiler	With
Moon Roof	Panoramic
Function
Power Window	Auto Up-Down with Jam Protect
Power Door Lock	With
Keyless Entry	Smart Entry
Ignition System	Push Start
Airconditioning System	F: Automatic Dual Zone Climate Control with S-Flow
Wireless Charger	2
Accessory Outlet	Front: 1; Deck: 1
Drive Mode Select	Eco, Sport, Normal, Custom, Trail, Snow
USB Charger (Type C)	Front (45W): 2, Center: 1, Rear (15W): 2
Audio System Type	12.9" Display Audio with Wireless Apple Carplay and Wireless Android Auto
Audio System Function	Bluetooth, AM/FM, Navigation, USB
Audio System Speakers	9-Speaker JBL Sound System
Meter Cluster Multi Info Display	12.3" TFT
Heads-up Display	With
Steering Switches	Audio, Multi-Info Display, Voice, Lane Tracing Assist, Adaptive Cruise Control
Steering Wheel Adjust	Tilt and Telescopic
Power Back Door	With Kick Sensor
Chassis
Front/Rear Brake	Fr: Ventilated Disc / Rr: Solid Disc

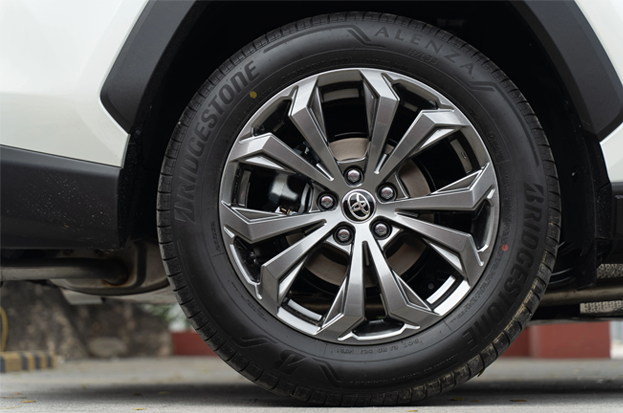

Tires / Wheels	235/50 R20
Suspension	Fr: MacPherson Strut / Rr: Multi-Link
Drivetrain	AWD
Spare Tires	Temporary Tire (165/90 D18)
Safety and Security
Blind Spot Monitor (BSM)	With
SRS Airbags	Driver, Passenger, Front Side, Curtain Shield, Driver Knee
Anti-Lock Brake System (ABS)	With
Vehicle Stability Control (VSC)	With
Hill-Start Assist Control (HAC)	With
Front Seatbelts	3 pt. ELR + Pretensioner + Force Limiter: 2
Rear Seatbelts	3 pt. ELR, Pretensioner and Force Limiter: 2, 3 pt. ELR: 1
Child Restraint System	Rear: 2
Emergency Brake Signal	With
Toyota Vehicle Security System (TVSS)	Immobilizer
Camera	Panoramic View Monitor
Clearance and Back Sonar	Front: 6 + Rear: 6
Pre-Collision System (PCS)	With
Automatic High Beam (AHB)	With
Lane Tracing Assist (LTA)	With
Lane Departure Alert (LDA)	With
Adaptive High Beam System (AHS)	With
Dynamic Radar Cruise Control (DRCC)	With
Downhill Assist Control (DAC)	With
Safe Exit Assist (SEA)	With
Parking Support Brake	With
Intelligent Parking Assist	With

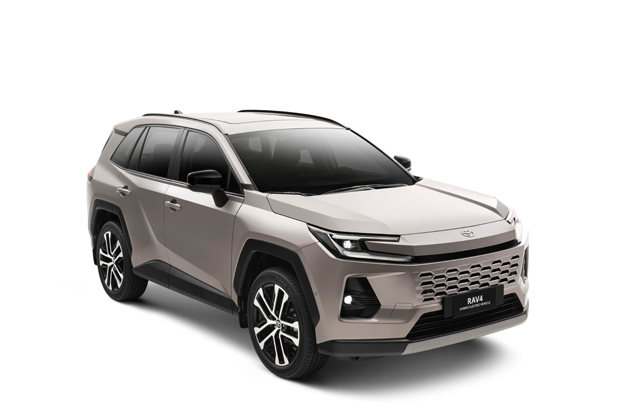

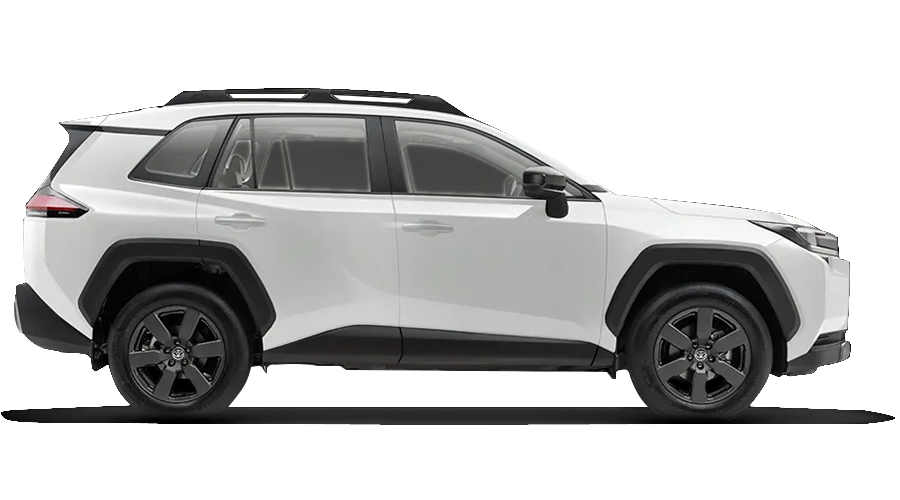

* * This photo is a different spec variant, actual unit may vary.


Attitude Black Mica	Massive Gray	Urban Rock	Ever Rest	Super White II

Specifications

Dimension and Capacity
Overall Dimensions (mm)	4,620 x 1,880 x 1,745
Wheelbase (mm)	2690
Min. Ground Clearance	201
Seating Capacity	5
Engine
Model	A25A-FXS
Engine Type	16-Valve DOHC, 4-Cylinder, In-line type, with VVT-iE and VVT-I, Hybrid
Engine Displacement (cc)	2487
Maximum Output (ps/rpm)	186 / 6000
Total System Max Output	239
Maximum Torque (Nm/Rpm)	221 / 3600 - 5200
Fuel Type	Gasoline
Fuel Capacity (L)	55
Transmission
Transmission	e-CVT
Interior
Seat Material	Synthetic Leather
Driver Seat Type & Adjustment	8-Way Power
Passenger Seat Type & Adjustment	6-Way Manual
Rear #1 Passenger Seat Type & Adjustment	60:40 Split + Fold Down + 2-Stage Reclining
Power Steering	Electronic
Steering Wheel Material	Leather
Parking Brake	EPB with Brake Hold
Sunvisor	D+P: With + Vanity Mirror + Light
Cup/Bottle Holder	Cupholder Fr: Front: 2, Rear: 2 / Bottleholder Rr: Front: 2, Rear: 2
Inside Rear View Mirror	Day and Night
Economy Meter	Hybrid System Indicator
Seat Ventilation	Driver and Passenger (Hi-Lo)
Tonneau Cover	With
Exterior
Headlamps	Projector LED
Daytime Running Lights	Single (Lower)
Front Fog Lamps	LED
Mudguards	Front + Rear
Roof Rail	With (Bridge Rails
Front Windshield Wiper	Rain-Sensing
Rear Windshield Wiper	Intermittent + Washer
Rear Combination Lamps	LED
Outside Rear View Mirror	Auto-fold, Adjust
Rear Spoiler	With
Overfenders	With
Moon Roof	Tilt & Slide
Function
Power Window	Auto Up-Down with Jam Protect
Power Door Lock	With
Keyless Entry	Smart Entry
Ignition System	Push Start
Airconditioning System	F: Automatic Dual Zone Climate Control with S-Flow
Wireless Charger	1
Accessory Outlet	Front: 1; Deck: 1
Drive Mode Select	Eco, Sport, Normal, Custom, Trail, Snow
USB Charger (Type C)	Front (15W): 2, Center: 1, Rear (15W): 2
Audio System Type	12.9" Display Audio with Wireless Apple Carplay and Wireless Android Auto
Audio System Function	Bluetooth, AM/FM, Navigation, USB
Audio System Speakers	9-Speaker JBL Sound System
Meter Cluster Multi Info Display	12.3" TFT
Steering Switches	Audio, Multi-Info Display, Voice, Lane Tracing Assist, Adaptive Cruise Control
Steering Wheel Adjust	Tilt and Telescopic
Power Back Door	With Kick Sensor
Chassis
Front/Rear Brake	Fr: Ventilated Disc / Rr: Solid Disc
Tires / Wheels	235/60 R18
Suspension	Fr: MacPherson Strut / Rr: Multi-Link
Drivetrain	AWD
Spare Tires	Temporary Tire (165/80 D17)
Safety and Security
Blind Spot Monitor (BSM)	With
SRS Airbags	Driver, Passenger, Front Side, Curtain Shield, Driver Knee
Anti-Lock Brake System (ABS)	With
Vehicle Stability Control (VSC)	With
Hill-Start Assist Control (HAC)	With
Front Seatbelts	3 pt. ELR + Pretensioner + Force Limiter: 2
Rear Seatbelts	3 pt. ELR, Pretensioner and Force Limiter: 2, 3 pt. ELR: 1
Child Restraint System	ISOFIX & Tether Anchor Rear: 2
Emergency Brake Signal	With
Toyota Vehicle Security System (TVSS)	Immobilizer
Camera	Panoramic View Monitor
Clearance and Back Sonar	Front: 4 + Rear: 4
Pre-Collision System (PCS)	With
Automatic High Beam (AHB)	With
Lane Tracing Assist (LTA)	With
Lane Departure Alert (LDA)	With
Dynamic Radar Cruise Control (DRCC)	With
Downhill Assist Control (DAC)	With
Safe Exit Assist (SEA)	With
Parking Support Brake	With
