Toyota Mabolo

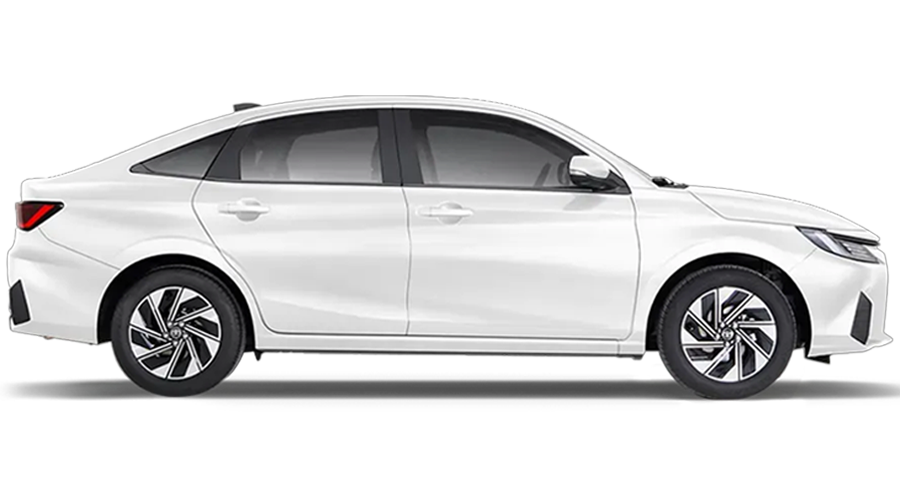

Platinum White Pearl Mica Attitude Black Mica	Scarlet SE Attitude Black Mica	Gray Metallic Attitude Black Mica

Specifications

Dimension and Weight
Overall Dimensions (mm)	4,425 x 1,740 x 1,480
Wheelbase (mm)	2,620
Seating Capacity	5
Min. Turning Radius	160
Engine
Engine Type	Hybrid, 4-Cylinder, In-line, 16-Valve, Dual VVT-i
Engine Displacement (cc)	1496
Maximum Output (ps/rpm)	91 / 5,500
Maximum Torque (Nm/Rpm)	121 / 4,800
Fuel Type	Gasoline
Fuel Capacity (L)	36
Transmission
Transmission	CVT
Interior
Seat Material	Leather
Driver Seat Type & Adjustment	6-Way Manual
Passenger Seat Type & Adjustment	4-Way Manual
Rear #1 Passenger Seat Type & Adjustment	Bench Type
Steering Wheel Switch	Tilt and Telescopic
Cup/Bottle Holder	FR : 2 / FR : 2 ; RR : 2
Exterior

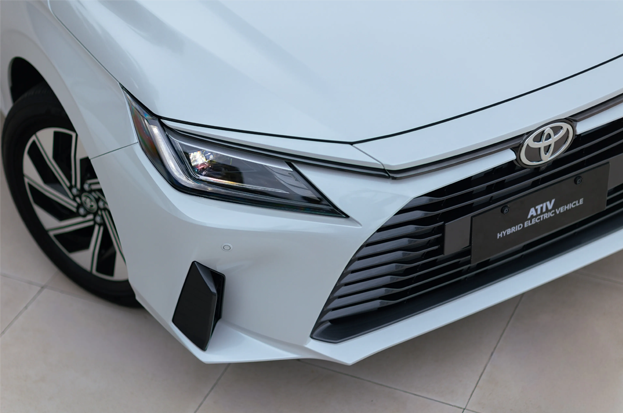

Headlamps	LED
Front Windshield Wiper	Intermittent, Mist, Time Adjust

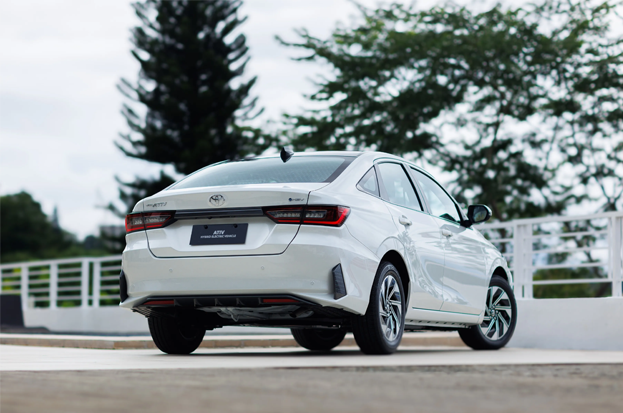

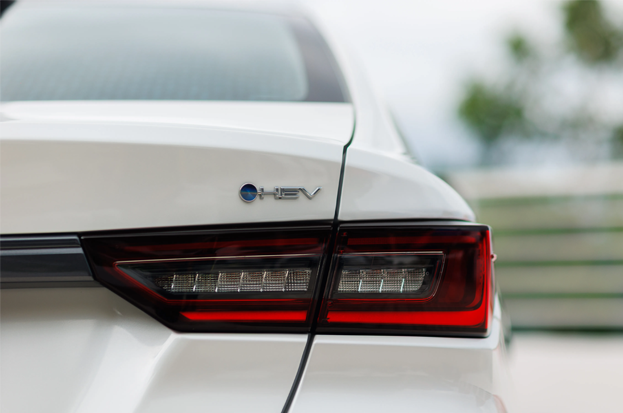

Rear Combination Lamps	LED with Sequential Turn Signals

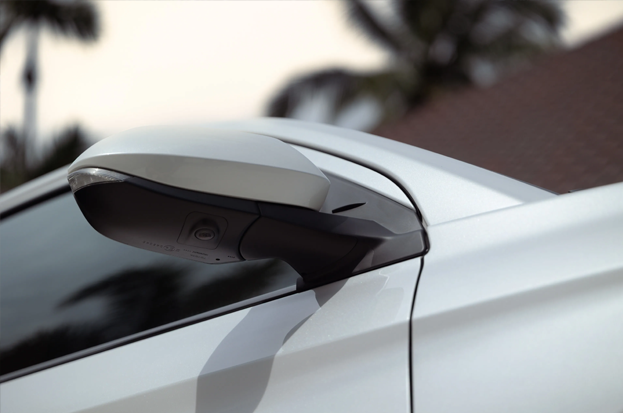

Outside Rear View Mirror	With Power Adjust, Side Turn Signal, Autofold
Function
Power Window	D: With Auto Up/Down and Jam Protect / P: With / R: With
Power Door Lock	With Speed Sensing
Light Control System	With Follow Me Home, Auto Light
Keyless Entry	With Smart Entry
Ignition System	Push Start

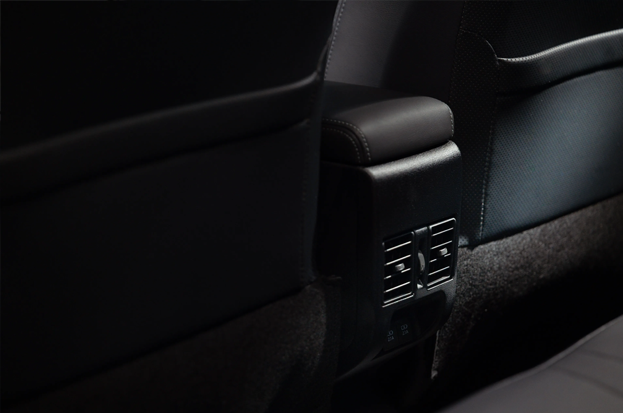

Airconditioning System	F: Automatic Climate Control / R: With Rear Vent
Wireless Charger	With
Rear USB Charger	Type A: 2
Drive Mode Select	Eco, Normal, Power, EV

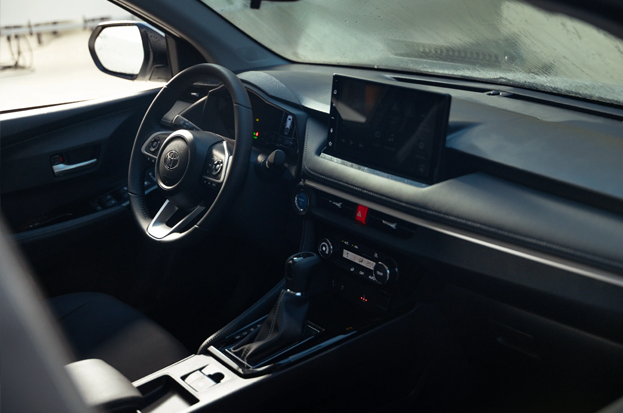

Audio System Type	10.1" Display Audio
Audio System Function	Wireless Apple CarPlay & Android Auto, Bluetooth, Voice Command
Audio System Speakers	6
Meter Cluster & Multi Info Display	7” Digital
Chassis
Front Brake/ Rear Brake	F: Ventilated Disc / R: Solid Disc
Tires	195/60 R16 Alloy
Wheels	195/60 R16 Alloy
Parking Brake	Electronic Parking Brake with Brake Hold
Safety and Security
Toyota Safety Sense (TSS)	With
Blind Spot Monitor (BSM)	With
Rear Cross Traffic Alert (RCTA)	With
SRS Airbags	Driver, Passenger, Side, Curtain Shield (6)
Anti-Lock Brake System (ABS)	With Brake Assist
Vehicle Stability Control (VSC)	With
Hill-Start Assist Control (HAC)	With
Front Seatbelts	3 pt. ELR Pretensioner and Force Limiter
Rear Seatbelts	3 pt. ELR : 2
Child Restraint System	2
Emergency Brake Signal	With
Toyota Vehicle Security System (TVSS)	Alarm, Immobilizer
Camera	Panoramic View Monitor
Clearance and Back Sonar	FR: 2; RR: 4
Pre-Collision System (PCS)	With
Automatic High Beam (AHB)	With
Lane Tracing Assist (LTA)	With
Lane Departure Alert (LDA)	With

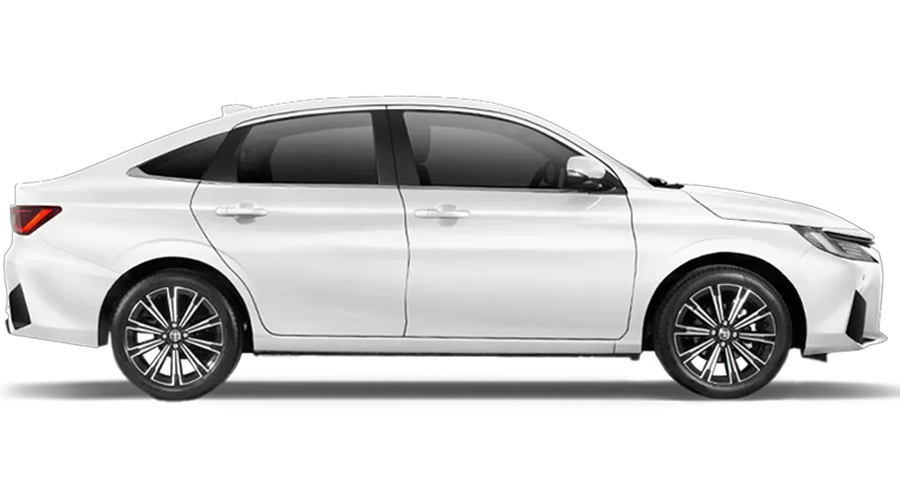

Platinum White Pearl Mica	Scarlet SE	Gray Metallic

Specifications

Dimension and Weight
Overall Dimensions (mm)	4,425 x 4,425 x 1,480
Wheelbase (mm)	2,620
Seating Capacity	5
Min. Turning Radius	160
Engine
Engine Type	4-Cylinder, In-line, 16-Valve, Dual VVT-i
Engine Displacement (cc)	1,496
Maximum Output (ps/rpm)	106 / 6,000
Maximum Torque (Nm/Rpm)	138 / 4,200
Fuel Type	Gasoline
Fuel Capacity (L)	40
Transmission
Transmission	CVT
Interior
Seat Material	Fabric
Driver Seat Type & Adjustment	6-Way Manual
Passenger Seat Type & Adjustment	4-Way Manual
Rear #1 Passenger Seat Type & Adjustment	Bench Type
Steering Wheel Switch	Tilt and Telescopic
Cup/Bottle Holder	FR : 2 / FR : 2 ; RR : 2
Exterior
Headlamps	LED
Front Windshield Wiper	Intermittent, Mist, Time Adjust
Rear Combination Lamps	LED
Outside Rear View Mirror	With Power Adjust, Side Turn Signal, Autofold
Function
Power Window	D: With Auto Up/Down and Jam Protect / P: With / R: With
Power Door Lock	With Speed Sensing
Light Control System	With Follow Me Home, Auto Light
Keyless Entry	With Smart Entry
Ignition System	Push Start
Airconditioning System	F: Automatic Climate Control / R: With Rear Vent
Rear USB Charger	Type A: 2
Audio System Type	9" Display Audio
Audio System Function	Wireless Apple CarPlay & Android Auto, Bluetooth, Voice Command
Audio System Speakers	6
Meter Cluster & Multi Info Display	7” Digital
Chassis
Front Brake/ Rear Brake	F: Ventilated Disc / R: Drum
Tires	205/50 R17 Alloy
Wheels	205/50 R17 Alloy
Parking Brake	Lever Type
Safety and Security
Blind Spot Monitor (BSM)	With
Rear Cross Traffic Alert (RCTA)	With
SRS Airbags	Driver, Passenger, Side, Curtain Shield (6)
Anti-Lock Brake System (ABS)	With Brake Assist
Vehicle Stability Control (VSC)	With
Hill-Start Assist Control (HAC)	With
Front Seatbelts	3 pt. ELR Pretensioner and Force Limiter
Rear Seatbelts	3 pt. ELR : 2
Child Restraint System	2
Emergency Brake Signal	2
Toyota Vehicle Security System (TVSS)	Alarm, Immobilizer
Camera	Panoramic View Monitor
Clearance and Back Sonar	FR: 2; RR: 4

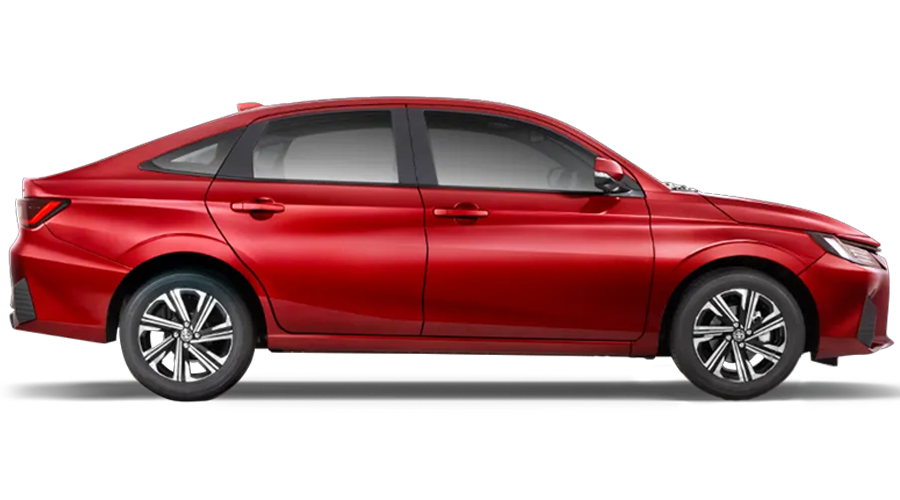

Scarlet SE	Gray Metallic	Metal Stream Metallic

Specifications

Dimension and Weight
Overall Dimensions (mm)	4,425 x 1,740 x 1,480
Wheelbase (mm)	2,620
Seating Capacity	5
Engine
Engine Type	4-Cylinder, In-line, 16-Valve, Dual VVT-i
Engine Displacement (cc)	1329
Maximum Output (ps/rpm)	98 / 6,000
Maximum Torque (Nm/Rpm)	122 / 4,200
Fuel Type	Gasoline
Fuel Capacity (L)	40
Transmission
Transmission	CVT
Interior
Steering Wheel Switch	Tilt and Telescopic
Exterior
Headlamps	LED
Front Windshield Wiper	Intermittent, Mist, Time Adjust
Rear Combination Lamps	Halogen
Outside Rear View Mirror	With Power Adjust, Side Turn Signal
Function
Power Window	D: With Auto Up/Down and Jam Protect / P: With / R: With
Power Door Lock	With Speed Sensing
Keyless Entry	With Smart Entry
Ignition System	Push Start
Airconditioning System	F: Automatic Climate Control / R: With Rear Vent
Rear USB Charger	Type A: 2
Audio System Smartphone Connectivity	Apple CarPlay & Android Auto, Bluetooth
Meter Cluster & Multi Info Display	7” Digital
Chassis
Front Brake/ Rear Brake	F: Ventilated Disc / R: Drum
Tires	195/60 R16 Alloy
Wheels	195/60 R16 Alloy
Parking Brake	Lever Type
Safety and Security
Blind Spot Monitor (BSM)	With
Rear Cross Traffic Alert (RCTA)	With
SRS Airbags	Driver, Passenger (2)
Anti-Lock Brake System (ABS)	With Brake Assist
Vehicle Stability Control (VSC)	With
Hill-Start Assist Control (HAC)	With
Front Seatbelts	3 pt. ELR Pretensioner and Force Limiter
Rear Seatbelts	3 pt. ELR : 2
Child Restraint System	2
Emergency Brake Signal	With
Toyota Vehicle Security System (TVSS)	Alarm, Immobilizer
Camera	Back Monitor


Scarlet SE	Gray Metallic	Metal Stream Metallic

Specifications

Dimension and Weight
Overall Dimensions (mm)	4,425 x 1,740 x 1,480
Wheelbase (mm)	2,620
Seating Capacity	5
Engine
Engine Type	4-Cylinder, In-line, 16-Valve, Dual VVT-i
Engine Displacement (cc)	1329
Maximum Output (ps/rpm)	98 / 6,000
Maximum Torque (Nm/Rpm)	122 / 4,200
Fuel Type	Gasoline
Fuel Capacity (L)	40
Transmission
Transmission	Manual
Exterior
Headlamps	LED
Rear Combination Lamps	Halogen
Function
Power Window	D: With Auto Up/Down and Jam Protect / P: With / R: With
Power Door Lock	With Speed Sensing
Chassis
Front Brake/ Rear Brake	F: Ventilated Disc / R: Drum
Tires	195/60 R16 Alloy
Wheels	195/60 R16 Alloy
Safety and Security
Front Seatbelts	3 pt. ELR Pretensioner and Force Limiter
Rear Seatbelts	3 pt. ELR : 2
Toyota Vehicle Security System (TVSS)	Alarm, Immobilizer
